Size:2”~24”Pressure rating: 150LB~600LB Reliable Performance Symmetrical Bidirectional Sealing Simple, reliable design Cost effective Gate Valve
SLab Gate Valve
Quantity

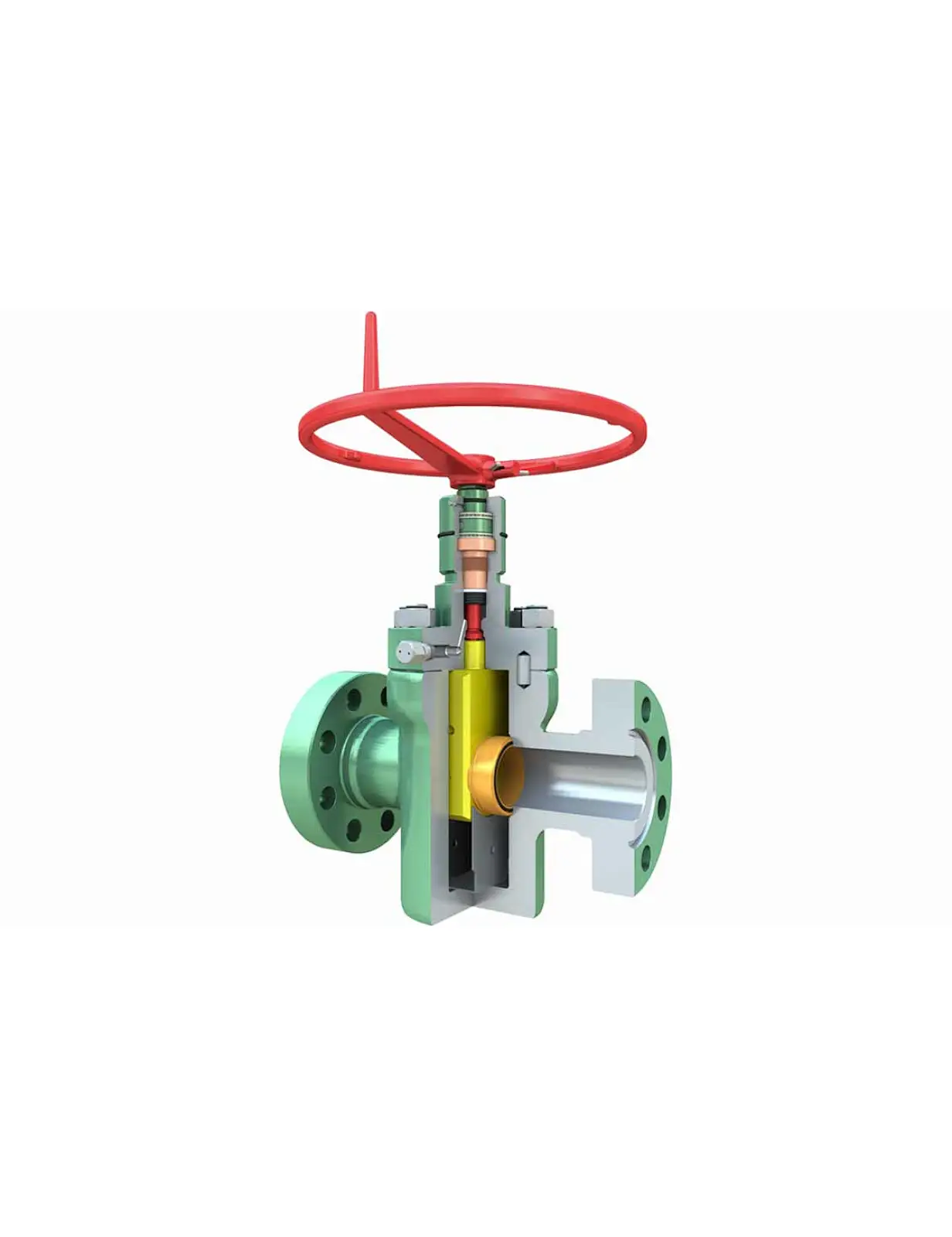

Product Overview: Athena SLab Gate Valve is the standard product offering for 5,000-psi [34.5-MPa] working pressure.  It has served the industry with distinction for many years across a range of application types worldwide and is well tested, both in assembly and component qualification testing.  This SLab Gate Valve also offers exceptional service life with minimal maintenance and provides a low life cycle cost compared to other 5,000-psi valve designs. as the slab gate valve manufacturersAthena SLab Gate Valvedesign takes advantage of our latest technology in materials and seal design.Metal-to-metal sealing for gas-tight sealing without sealantReliability through simplicity of design—one-piece floating seats and a floating slab gate provide reliable performance and minimize sealing interfacesSymmetrical bidirectional sealing to prevent trapping of pressure inside the valve cavitySpring-loaded and pressure-energized stem seal that requires no longitudinal preload or precise spaceout is requiredSingle-pressure, energized PEEK lip seal in the seat-to-body interfaceThe lip seal in the SLab Gate Valve performs several functionsEnhanced sealing integrity at very low differential pressures where low bearing stresses tend to limit the effectiveness of the metal-to-metal seal.



Features&Compliance:
Size: 2”~24”
Pressure rating: 150LB~600LB
Body material:Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.) alloy steel/ Al-bronze
End connection: RF/RTJ/BW/SW/NPT
Operation:Hand wheel / Gear/ Motor

NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL,FIRE SAFE







Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
