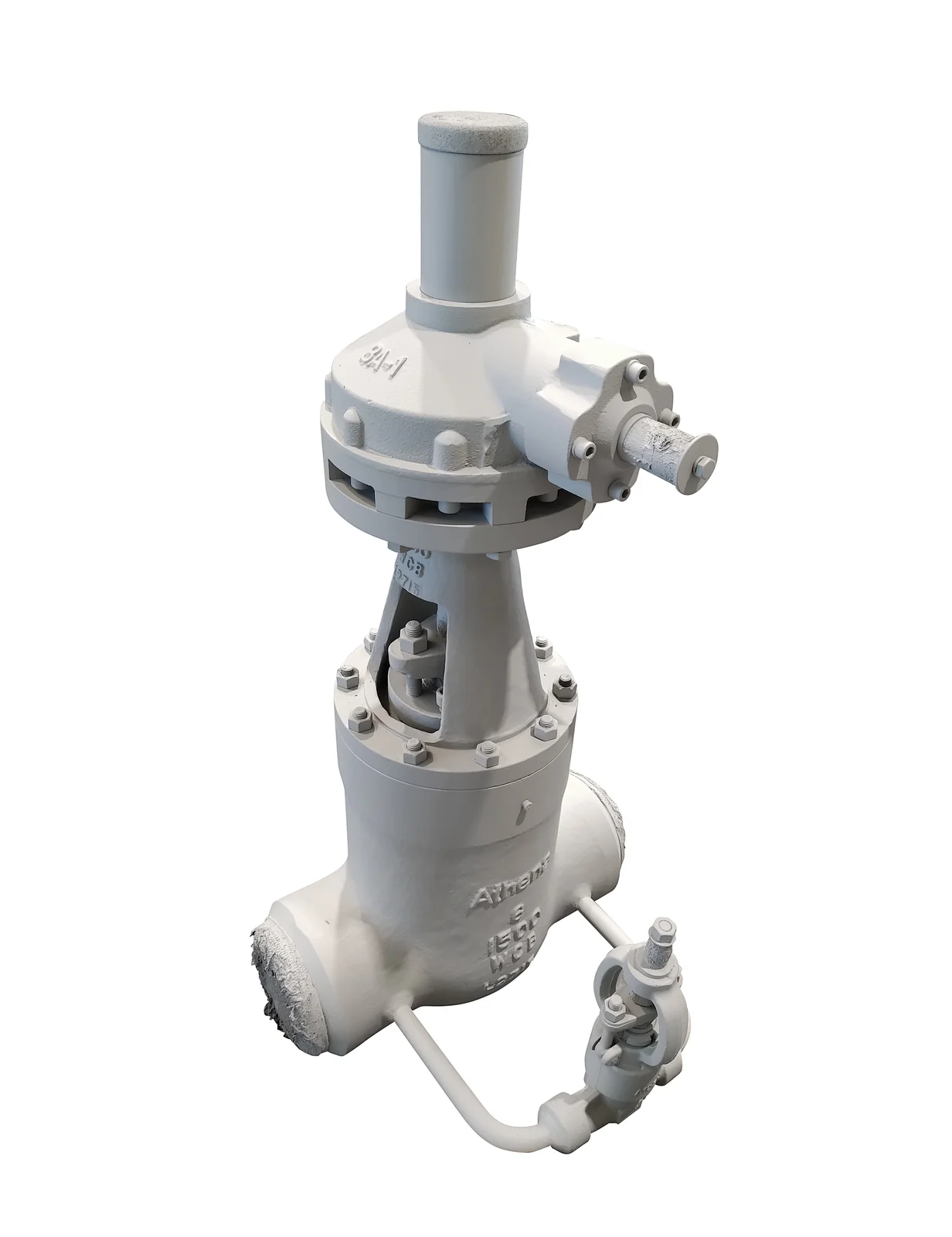

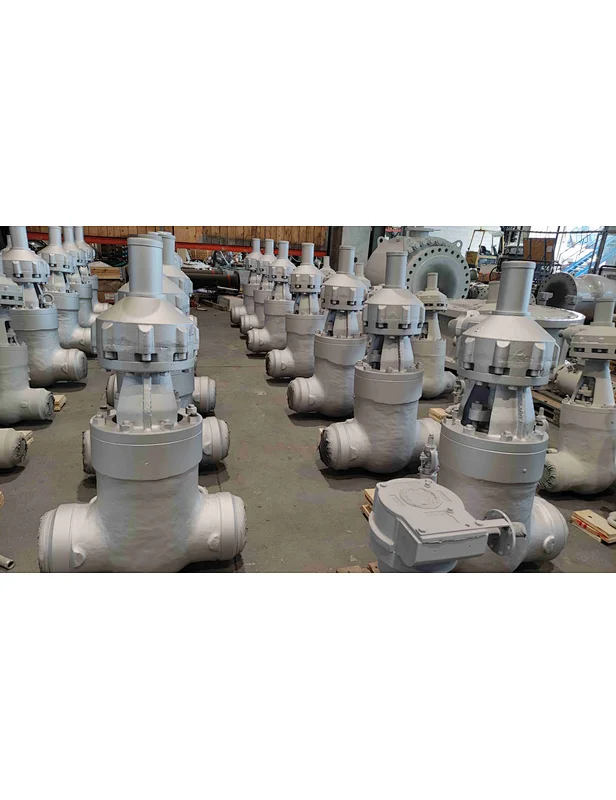

Cast Steel Pressure Seal Type Gate Valve
Cast Steel Pressure Seal Type Gate Valve
Quantity

Product Overview: Athena Cast Steel Pressure Seal Type Gate Valve are designed based on API/BS and ASME B16.34.pressure seal gate valve adopt high pressure and high temperature applications, proven over years of service in conventional thermal and nuclear power plants as well as other services around the world. Also preferred in high pressure, high temperature hydrocarbon or petrochemical processing services
Pressure pressure seal valveare used for high pressure service, typically for pressures above 100 bar. The unique feature of the pressure seal bonnet is that the body-bonnet joints seal improves as the internal pressure within the valve increases.The main applications are: petrochemical industry, steam circuits, boiler circulation, oil and gas applications, power stationsCommon used types of medium encountered are: steam, condensate, boiler feedwate
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL,FIRE SAFE


Features&Compliance:

Size: 2”~18”
Pressure rating: 600LB~2500LB
Body material:Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.) alloy steel/ Al-bronze
End connection: RF/RTJ/BW/SW/NPT
Operation:Hand wheel / Gear/ Motor


Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
