Pressure Balance Lubricating Type Plug Valves
Pressure Balance Lubricating Type Plug Valves
Quantity

Product Overview:2 way plug valve is shaped like a cylinder or cone and can be rotated inside the valve body to control flow of fluids. 2 way plug valve have one or more hollow passageways often placed horizontally to allow ease of flow through the valve when open. The most common type of plug valve is the 2 port model with an open and closed position. The two ports are usually located on opposite sides of the valve with one passageway leading from inbound to outbound and the stem and handle located on the top. 2 way plug valve also uses a quarter turn valve, which is useful where quick and frequent operation is essential. The valve ends can be flanged, hub type, or butt weld.

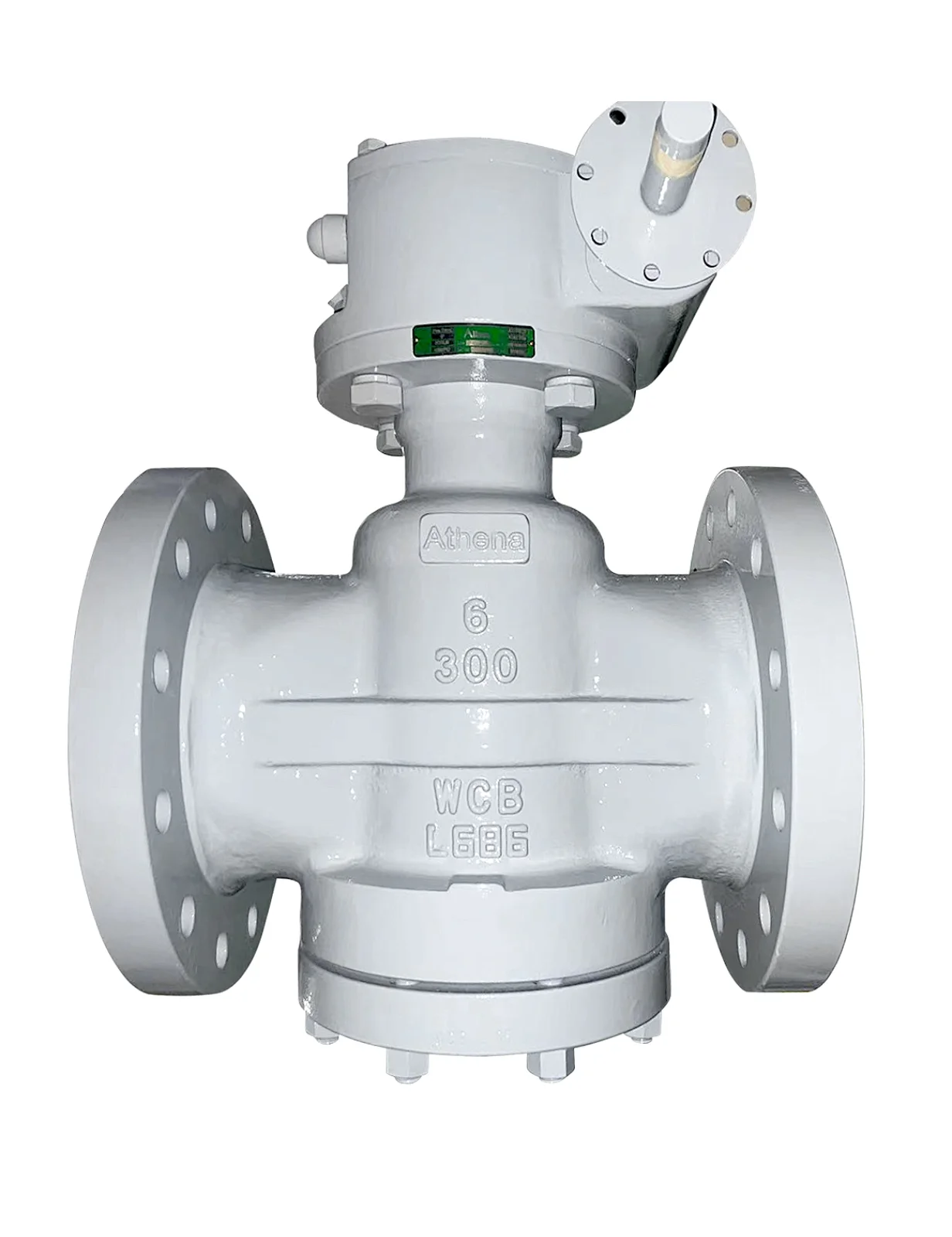

Athena pressure balance plug valve is a type of lubricated plug valves,it product rational structure, reliable sealing, excellent performance, aesthetically pleasing. the valve opening and closing process was conducted in sealing face from the state, not cause of sealing surface wear."it's 2 way plug valve, it is more convenient to install and use4 parts material and flange size, according to actual working condition of reasonable selecting or user requirements, to meet all kinds of engineering needs.



Features&Compliance:

Size: 1/2”~36”
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel
End connection: RF,BW
Operation: Lever Gear motor/pneumatic actuators

NACE: MR0175
Bore: Full Bore and Reduced Bore

Certificate: CE/PED, ISO, ATEX, SIL


Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
