Needle valve / Up to 6000 psi (413bar)/Metric and fractional tube fittings, NPT threads, ISO/BSP threads, MS threads/Size: 1/8 to 3/4 in., 3 to 18 mm/Manual / Shut-off / IN series

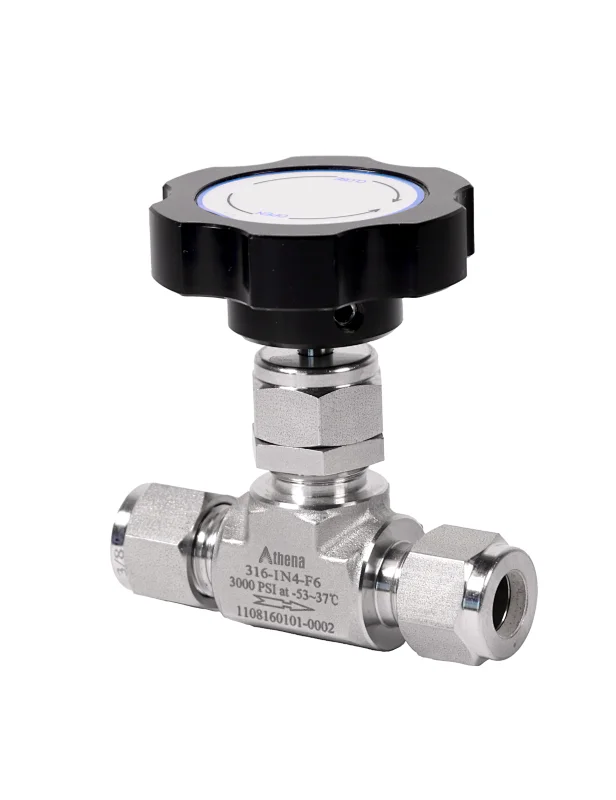

Athena Integral-Bonnet Needle Valve
-Material: 316SS, titanium, other material as request
-Working Pressure: Up to 6000 psi (413bar)
-Working Temperature -65℉ to 500℉ (-53℃ to 260℃
-End Connection Type: Metric and fractional tube fittings, NPT threads, ISO/BSP threads, MS threads
-End Connection Size: 1/8 to 3/4 in., 3 to 18 mm
-Working Pressure: Up to 6000 psi (413bar)
-Working Temperature -65℉ to 500℉ (-53℃ to 260℃
-End Connection Type: Metric and fractional tube fittings, NPT threads, ISO/BSP threads, MS threads
-End Connection Size: 1/8 to 3/4 in., 3 to 18 mm
Quantity
Athena Integral-Bonnet Needle Valve
Performance
-Compact valve body
-Packing nut makes outside adjusting possible
-Full supporting packing reduces adjusting requirement
-Cold rolled threads of valve stem
-2-piece v-type packing: Better seal, ware resistance,lower torque force
-Valve stem material: High hardness stainless steel,and soft material available
