instrumentation ball valves
Needle valve / up to 3000 psi(207bar)/metric and fractional tube fittings NPT threads, ISO/BSP threads, weld ends/metric and fractional tube fittings NPT threads, ISO/BSP threads, weld ends/manual / shut-off / IB series

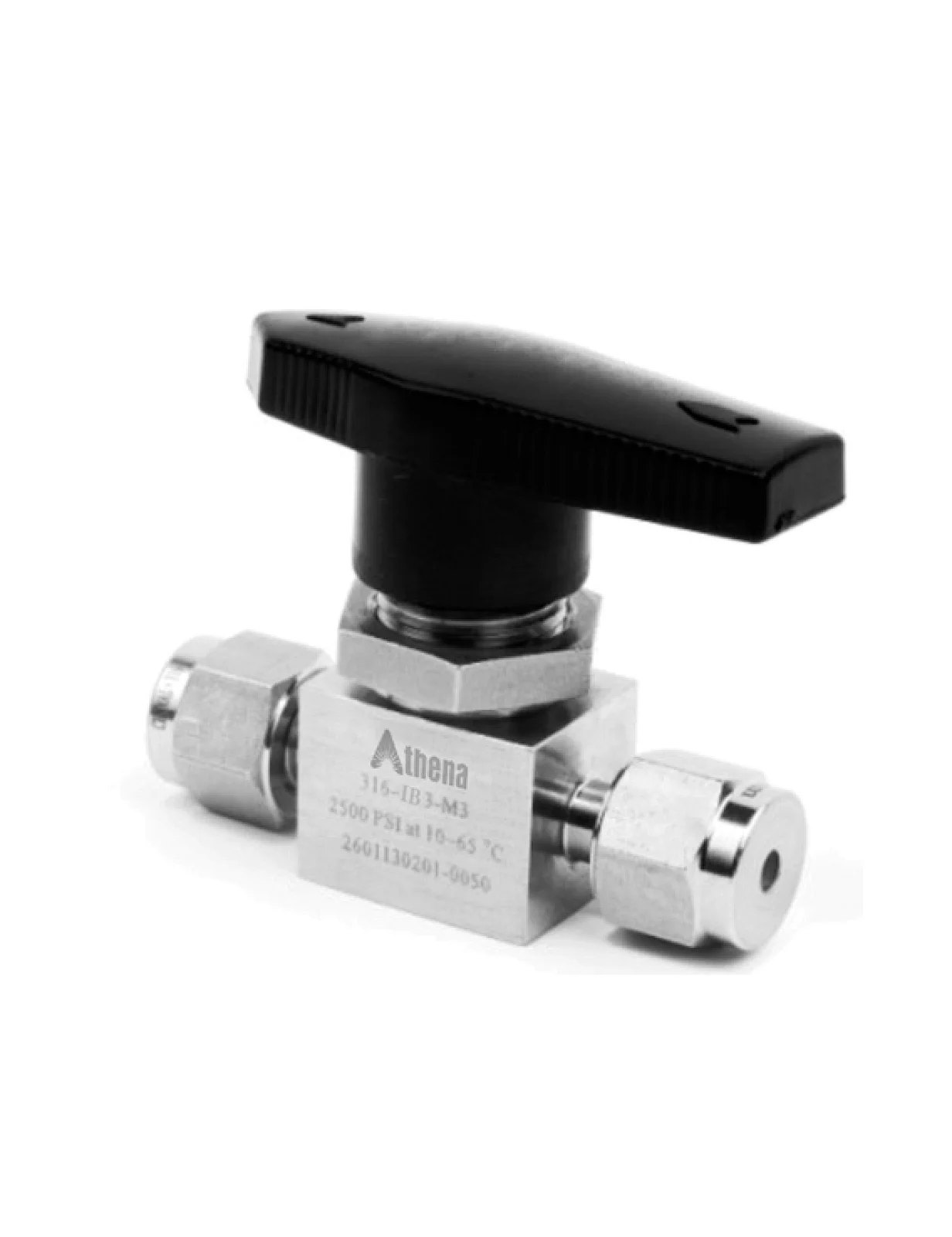

Athena Instrument Ball Valve
-Working Pressure: up to 3000 psi(207bar)
-Working Temperature -65℉ to 300℉ (-53℃ to 148℃)
-Material: 316ss, titanium, other material as request
-Valve Seat: PTFE, RPTFE, UHMWPE
-Flow Way: straight and 3-way, 4-way, 5-way, 6-way, 7-way available
-End Connection Type: metric and fractional tube fittings NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/16 to 3/4 in., 3 to 22 mm
Quantity
Athena Instrument Ball Valve

Performance

-Compact design, with strong flow capability
-V-type packing: better seal, ware-resistance,lower torque force
-Variety of end connection type available
