Trunnion Ball Valve 2”~40”API6D Wide Portfolio Of Side-Entry And Top-Entry Designs
Forged Steel Trunnion Ball Valve
Size: 2”~40”
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelloy etc.)
End connection: RF/RTJ/BW
Operation:Lever/Gear/Motor/Pneumatic actuators
Seat type: Soft seat/Metal seat
Design: Blow-out proof stem design, Anti-static design and API 607 Fire Safe Design
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL, FIRE SAFE
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelloy etc.)
End connection: RF/RTJ/BW
Operation:Lever/Gear/Motor/Pneumatic actuators
Seat type: Soft seat/Metal seat
Design: Blow-out proof stem design, Anti-static design and API 607 Fire Safe Design
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL, FIRE SAFE
Quantity
Product Overview:

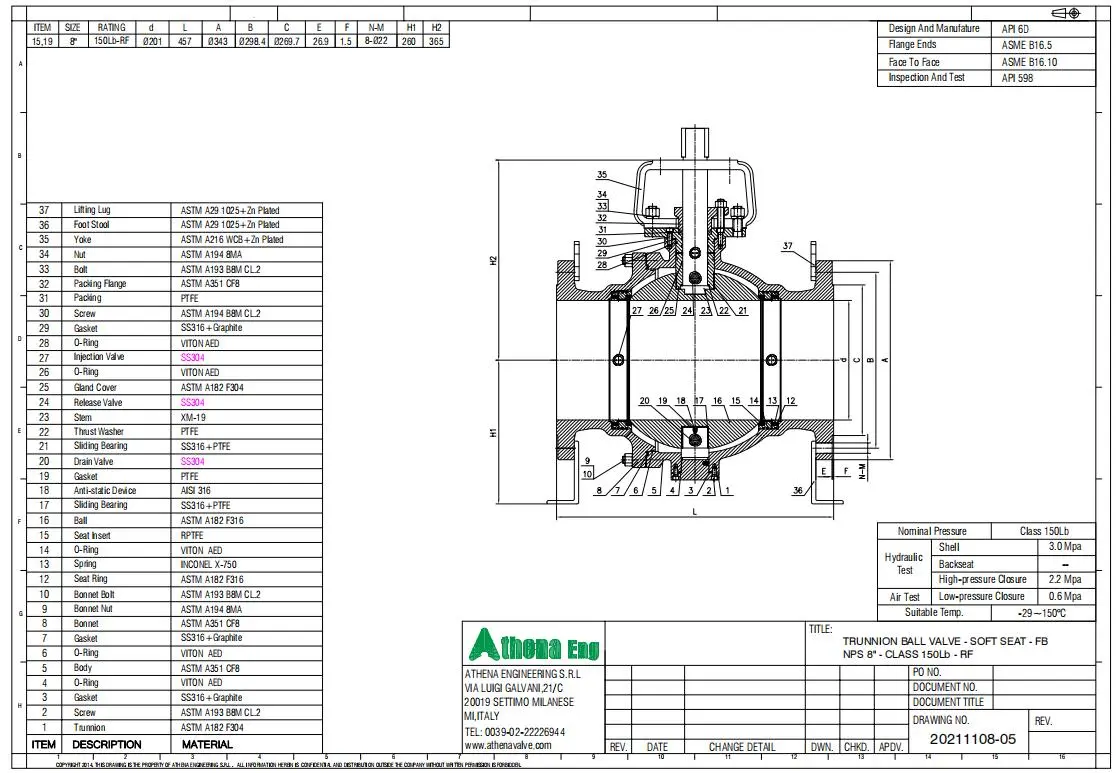

Athena forged steel trunnion ball valve
- Using a ball as the structure to close the cross-section of the pipe and prevent the flow of the fluid.
- Forged steel bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.
- Offered with self relieving seats or optional double piston sealing. Special seat compounds are also available.
- Each valve meets API-6D, API 6FA and Nace requirements.
- Optional stem extensions, actuators, pipe pups and specialized coatings.
Athena forged steel trunnion ball valve
- Using a ball as the structure to close the cross-section of the pipe and prevent the flow of the fluid.
- Forged steel bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.
- Offered with self relieving seats or optional double piston sealing. Special seat compounds are also available.
- Each valve meets API-6D, API 6FA and Nace requirements.
- Optional stem extensions, actuators, pipe pups and specialized coatings.
Partial List of Applications:
- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
