Design API 602 :1/2″-2″ 150LB to 2500LB High Sealing Performance Longer Service Life
Forged Steel Gate Valves
Size range:1/2"~2"
Pressure range:150LB - 2500LB
Connection: RF/RTJ/SW/FNPT/BW
Body material: Carbon steel/Stainless steel/Alloy steel/Special ( Monel /Inconel /Hastelloy etc.)
Design: API 602
Construction: Bolted Bonnet, Welded Bonnet, Pressure Seal
Bore: Full Bore and Reduced Bore
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL, FIRE SAFE
Pressure range:150LB - 2500LB
Connection: RF/RTJ/SW/FNPT/BW
Body material: Carbon steel/Stainless steel/Alloy steel/Special ( Monel /Inconel /Hastelloy etc.)
Design: API 602
Construction: Bolted Bonnet, Welded Bonnet, Pressure Seal
Bore: Full Bore and Reduced Bore
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL, FIRE SAFE
Quantity
Product Overview:

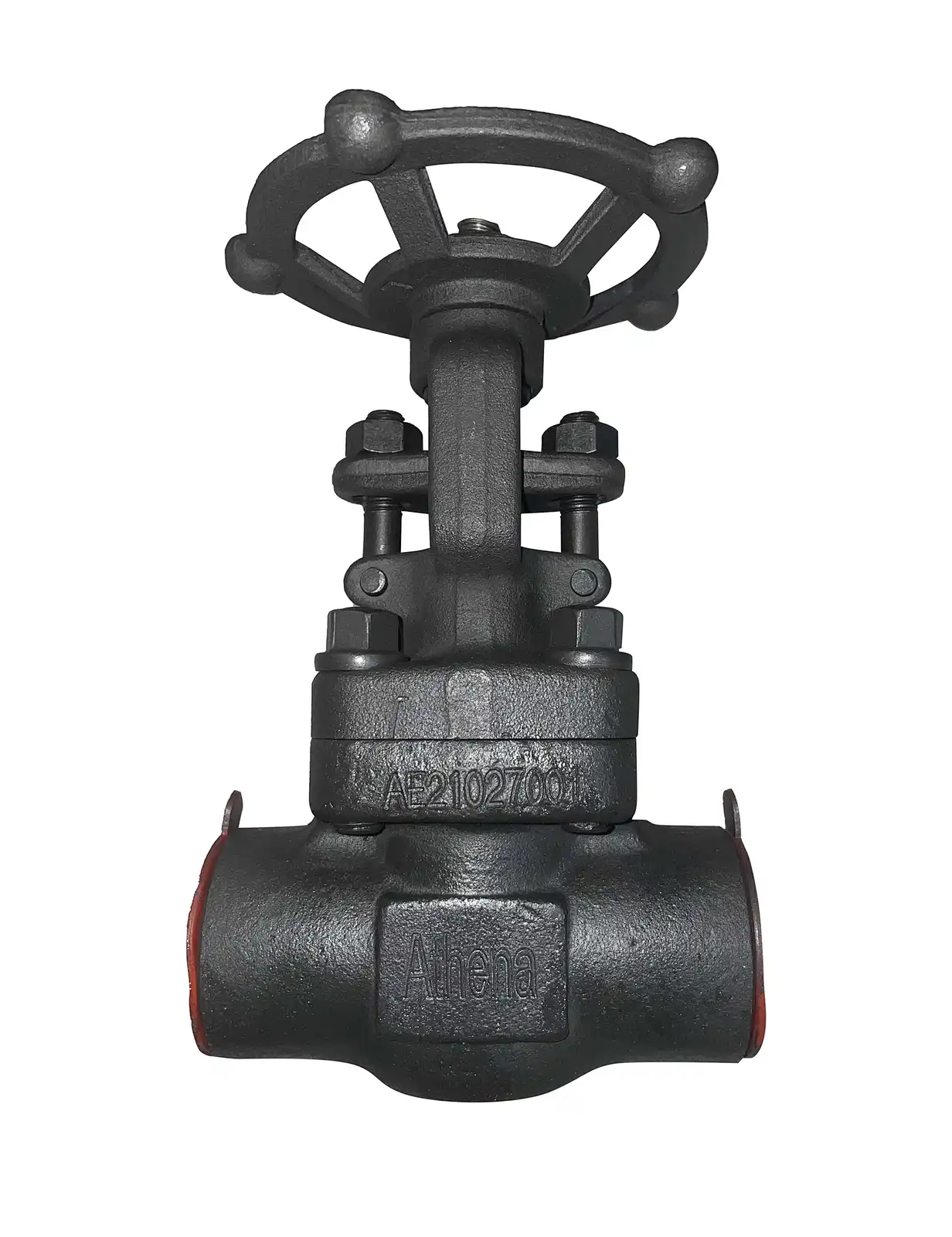

ATHENA Forged Steel Gate Valves
- When open the media will flow with a minimal amount of turbulence and pressure drop through the valve.
- Designed to API 602 and has an outside screw and yoke with rising stem. The handwheel operates the gate valve for both isolation applications only.
- Offering a tight shut-off and low pressure drop.
- Suitable for the most demanding of process applications and industries where the isolation of viscous fluids and liquid are required.
- Provide a positive tight shut off in the horizontal or vertical position for process fluids in pipelines. They also offer a small amount of control for throttle Steam, gas or liquids.
Athena manufactures valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies.
ATHENA Forged Steel Gate Valves
- When open the media will flow with a minimal amount of turbulence and pressure drop through the valve.
- Designed to API 602 and has an outside screw and yoke with rising stem. The handwheel operates the gate valve for both isolation applications only.
- Offering a tight shut-off and low pressure drop.
- Suitable for the most demanding of process applications and industries where the isolation of viscous fluids and liquid are required.
- Provide a positive tight shut off in the horizontal or vertical position for process fluids in pipelines. They also offer a small amount of control for throttle Steam, gas or liquids.
Athena manufactures valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies.
Partial List of Applications:
- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
