Needle valve / Up to 10000 psi (689bar)/Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends/Size: 1/8 to 11/4 in., 3 to 28 mm/Manual / Shut-off / FN series

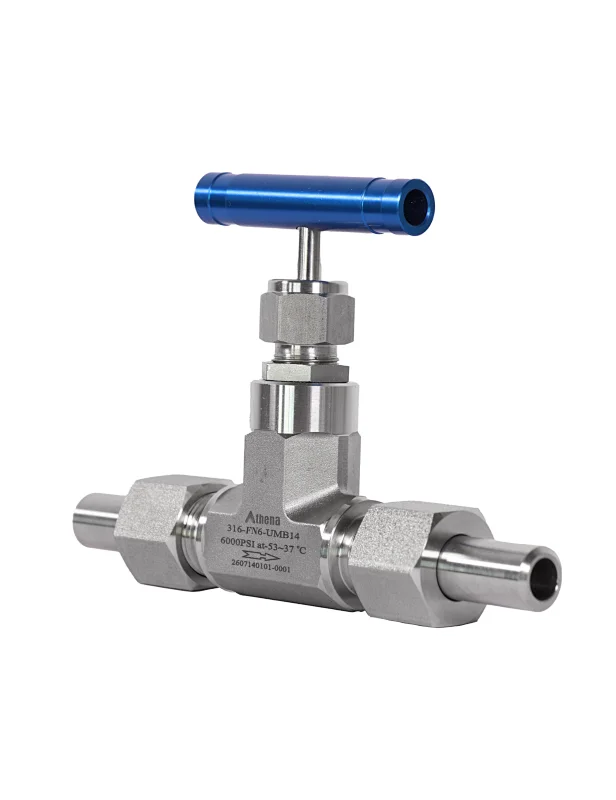

Athena Forged Needle Valve
-Material: 316SS, titanium, other material as request
-Working Pressure: Up to 10000 psi (689bar)
-Working Temperature -65℉ to 1200℉（-53℃ to 648℃）
-End Connection Type: Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/8 to 11/4 in., 3 to 28 mm
-Working Pressure: Up to 10000 psi (689bar)
-Working Temperature -65℉ to 1200℉（-53℃ to 648℃）
-End Connection Type: Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/8 to 11/4 in., 3 to 28 mm
Quantity
Athena Forged Needle Valve
Performance
-Compact forged design for high temperature and high pressure
-Rolled threads of packing bolt ensures longer life service
-Cold rolled threads of valve stem
-Stellite surfacing lower stem provides better wear resistance
-Back seat seals in fully open position
-Rolled threads of packing bolt ensures longer life service
-Cold rolled threads of valve stem
-Stellite surfacing lower stem provides better wear resistance
-Back seat seals in fully open position
