2″-40″ 150LB~2500LB Butterfly Valve , Good Sealing&Performance Under low pressure
Electric Butterfly Valves
Size: 2”~40”
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelloy etc.) alloy steel
End connection: RF/RTJ/BW/LUG/WAFER
Operation: Electric actuators
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelloy etc.) alloy steel
End connection: RF/RTJ/BW/LUG/WAFER
Operation: Electric actuators
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL
Quantity
Product Overview:

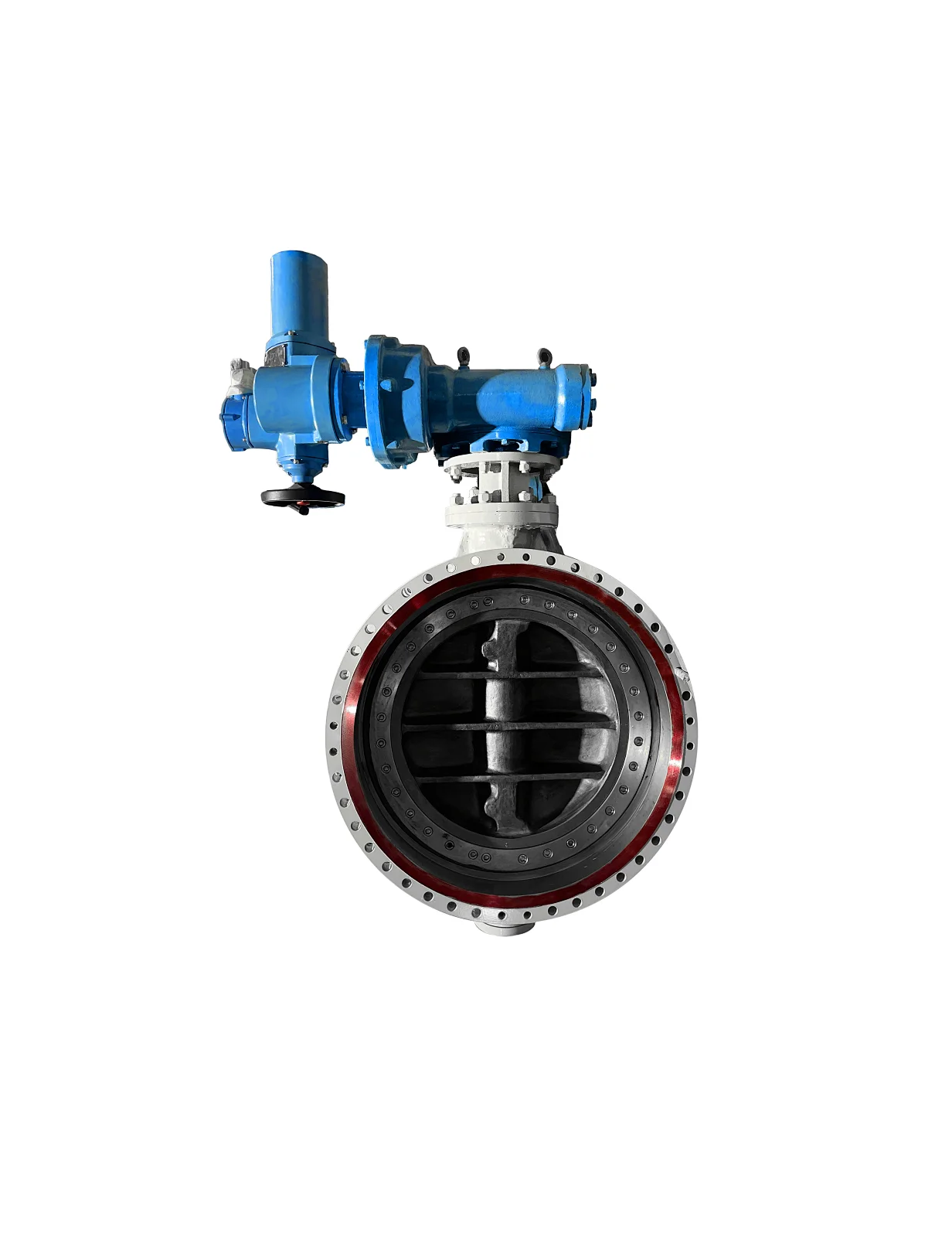

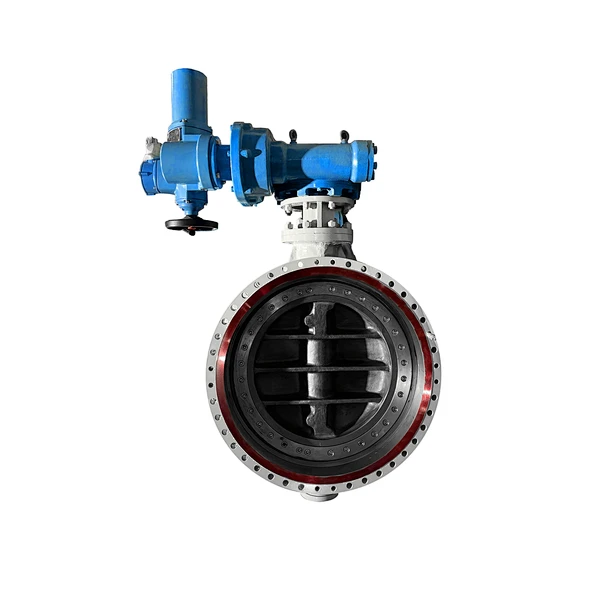

Athena electric butterfly valve
- Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
- Electric butterfly valve Standard Features
Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
Unique wave line seat and special disc shape reduce the torque required to turn the valve and extend the seal life
Lower torque also reduces the size of the actuator, lowering the cost of the valve assembly
- For on-off control of water and other media compatible with the materials of construction.
Athena manufactures electrically operated butterfly valve from genuine guaranteed raw material with material test certificates, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies.
Athena electric butterfly valve
- Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
- Electric butterfly valve Standard Features
Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
Unique wave line seat and special disc shape reduce the torque required to turn the valve and extend the seal life
Lower torque also reduces the size of the actuator, lowering the cost of the valve assembly
- For on-off control of water and other media compatible with the materials of construction.
Athena manufactures electrically operated butterfly valve from genuine guaranteed raw material with material test certificates, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies.
Partial List of Applications:
- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
