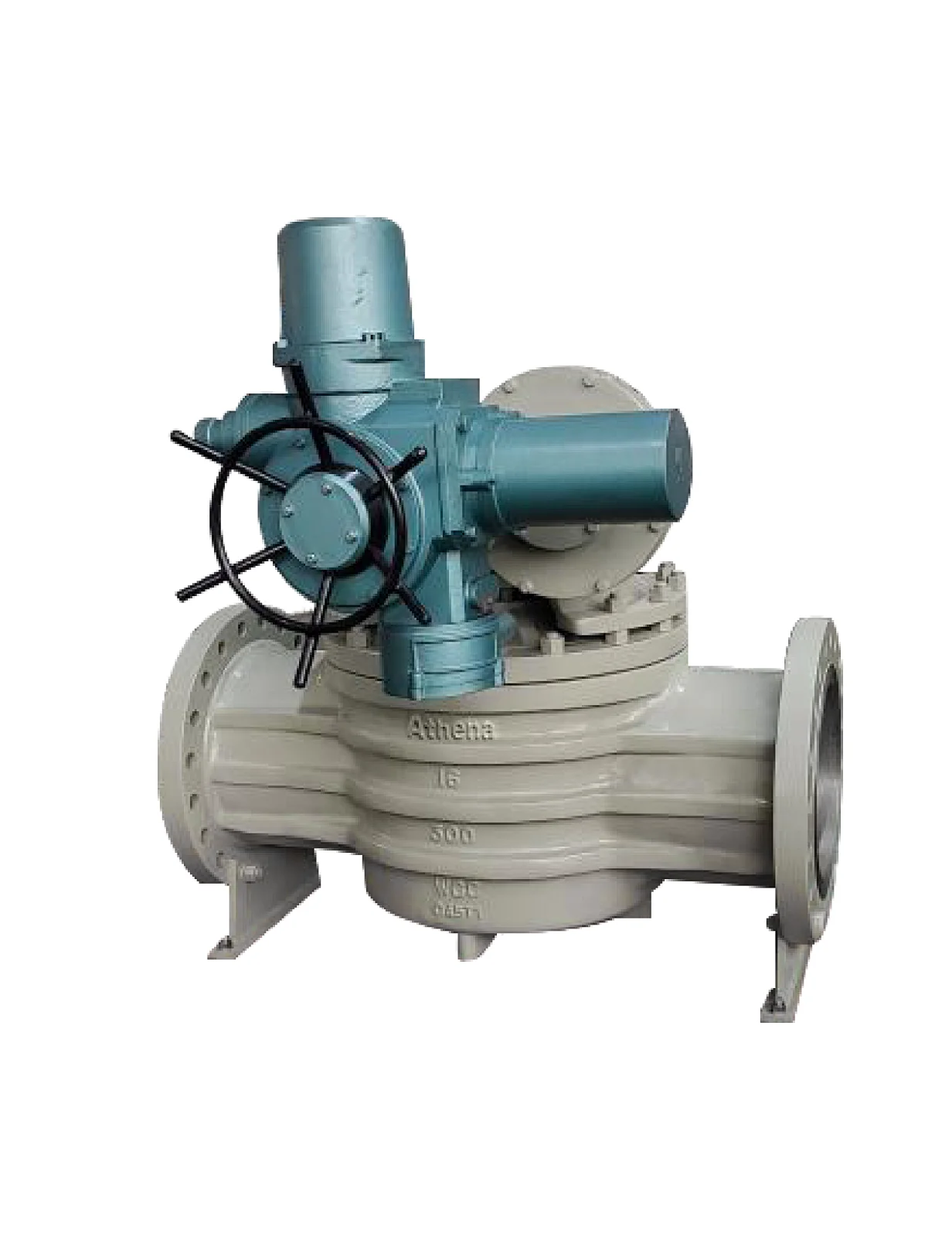

Electric Plug Valves
Electric Plug Valves
Quantity

Product Overview:Athena as plug valve manufacturers theeccentric plug valve are provided in sizes ranging from 3–72 inches with a cold working pressure rating of 150 or 175 psig depending on size and have a flow rating of 8 feet per second. The valves are available in short-body and long-body configurations and are seat-tested in the direct pressure direction unless otherwise specified.In design, the port and plug face are round, similar to a half ball valve.  , rectangular and round, can be provided with standard 80% port openings or full 100% port openings and are piggable using flexible urethane pigs. Plug valves also can be provided with -metal-to-metal seats for severe applications such as activated sludge service. the operation torque is greatly reduced, and the wear of sealing surface is reduced to the limit, and the service life of valve is extended. Rectangular straight abortion, small head loss, good linear flow regulation. Its excellent sealing and corrosion resistance, suitable for urban sewage, industrial sewage, mud and clear water and other working environment,We manufacture valves from genuine guaranteed raw material with material test certificate , hydraulic test certificates , Mill TC 3.1.b available with all supply. Also , we can provide valves with third party inspection agencies.

Features&Compliance:

Size: 1/2”~36”
Pressure rating: 150Lb~2500Lb
Body material:Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.)
End connection: RF/RTJ/BW
Operation: Motor
NACE: MR0175
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL



Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
