Cryogenic Ball Valves
Cryogenic Ball Valves
Quantity

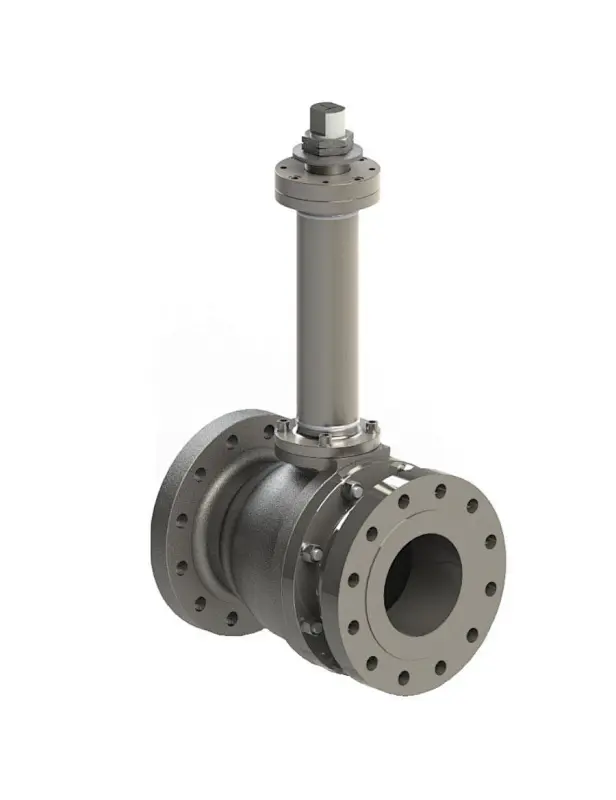

Product Overview: Cryogenic ball valve is manufactured for extremely low temperature.Valves are rising stem ball valve designed with an integral bonnet extension which prevents cryogenic liquids from reaching the stem packing by enabling the liquids to boil and convert to gas. Athena offers industrial valves for all types of cryogen services including oxygen, hydrogen, methane, ammonia, nitrogen, fluorine, LNG and others.
The cryogenic design includes:Bonnet extension with live loaded stem seal.Body cavity relief hole in ball to prevent over-pressure due to thermal expansion.
Blow out proof stem.Engineered material components to ensure low thermal stress.
Athena cryogenic ball valve operate at low torque throughout the entire temperature range.
Blow-out proof stem design
Anti-static design and API 6FA Fire Safe DesignBore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL,FIRE SAFE--
We manufacture cryogenic valve from genuine guaranteed raw material with material test certificate , hydraulic test certificates , Mill TC 3.1.b available with all supply. Also , we can provide valves with third party inspection agencies.

Features&Compliance:

Size: 1/2”~24”
Pressure rating: 150Lb~600Lb
Body material: Low temperature Carbon steel /Stainless steel
End connection: RF/RTJ/BW/SW/NPT
Operation: Handwheel / Gear/ motor/pneumatic actuators



Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
