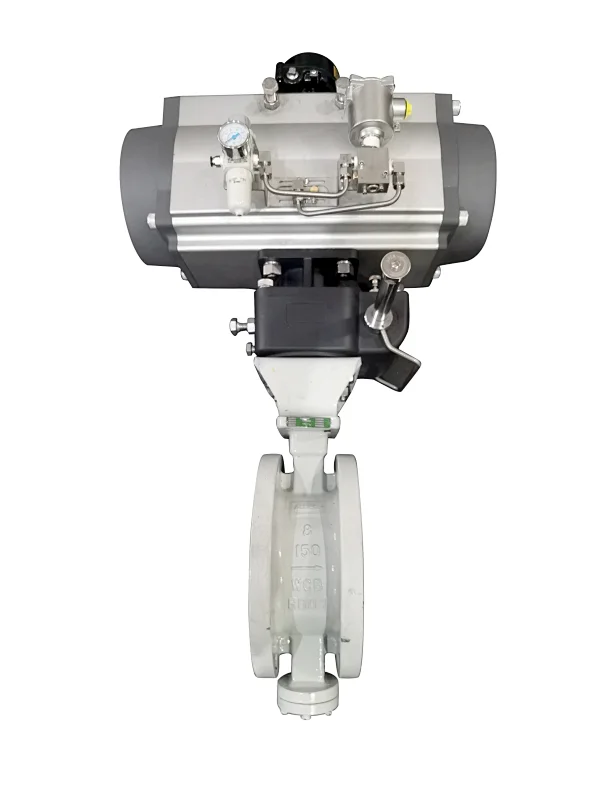

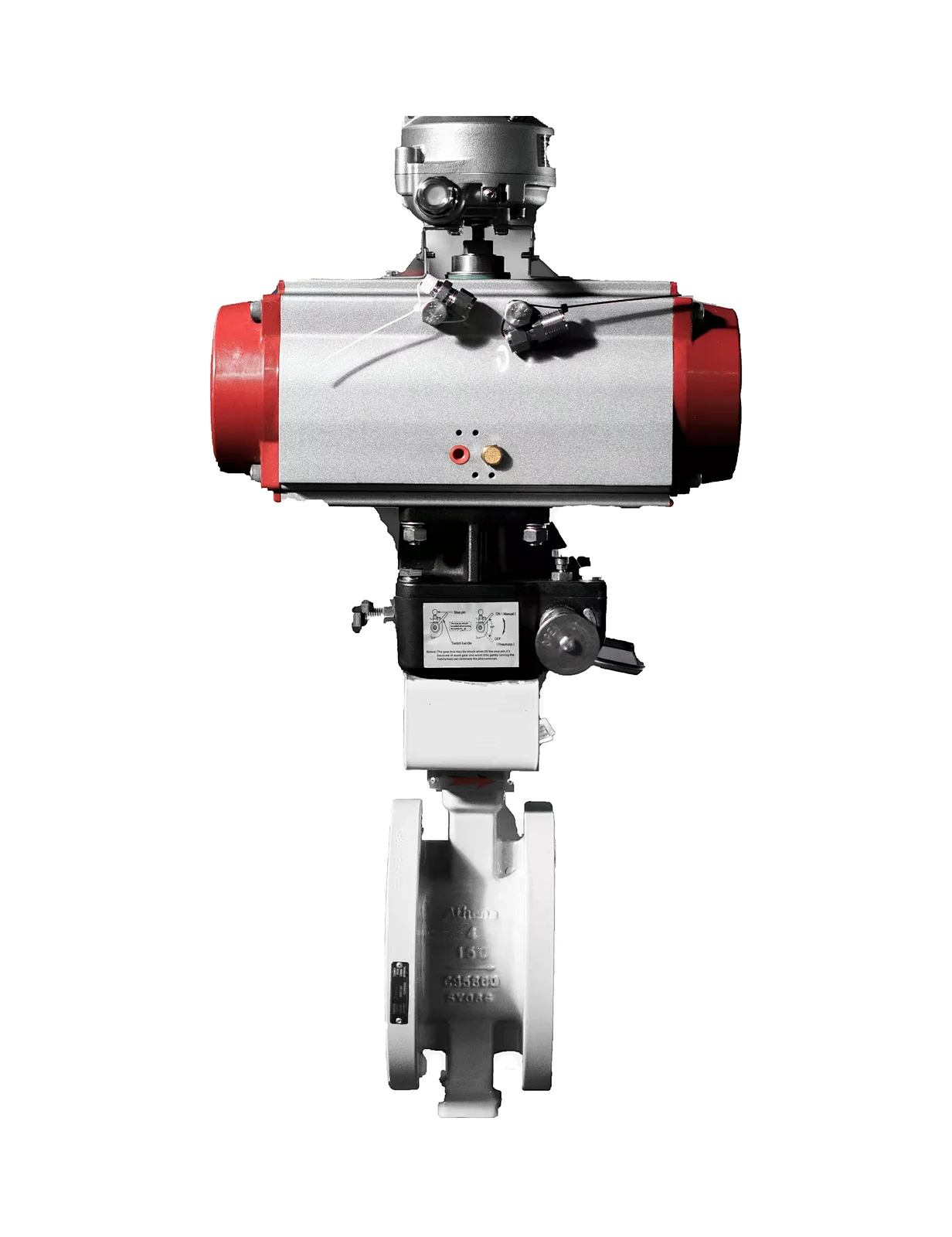

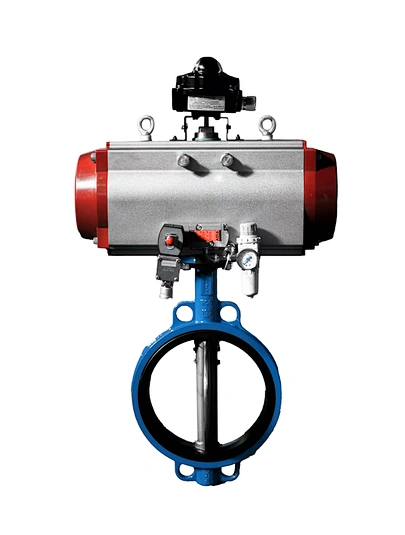

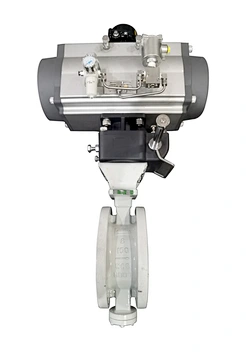

Pneumatic Butterfly Valves
Pneumatic Butterfly Valves
Quantity

Product Overview:Athena is a leading pneumatic butterfly valves manufacturer, butterfly valve with pneumatic actuator working principle. bf valve is driven by rotating cylinder valve. The seal plate compacts O-ring isolated from the vacuum and atmosphere completely. Athena Pneumatic butterfly valve has advantages as quick opening and closing, easy installation, small size and long life cycles. Main application of Athena Pneumatic butterfly valve will be fully isolated contaminating and aggressive gas in processes. And the valve is located between pump and process chamber.The Pneumatic Butterfly Valves are provided in both single acting and double acting actuators. These valves belong to the quarter turn valves family these valves are used for industrial and domestic applications. They go with all kind of flow like hot water, cold water, HVAC, condenser, compressed air and vacuum.




Features&Compliance:

Size: 2”~40”
Pressure rating: 150Lb~2500Lb
Body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly etc.) alloy steel
End connection: RF/RTJ/BW
Operation: Pneumatic actuators
NACE: MR0175
Certificate: CE/PED, ISO, ATEX, SIL,

Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
