Needle valve /Up to 6000 psi (413 bar)/ Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends/Size: 1/8 to 11/4 in., 3 to 28 mm/Manual / Shut-off/BN series

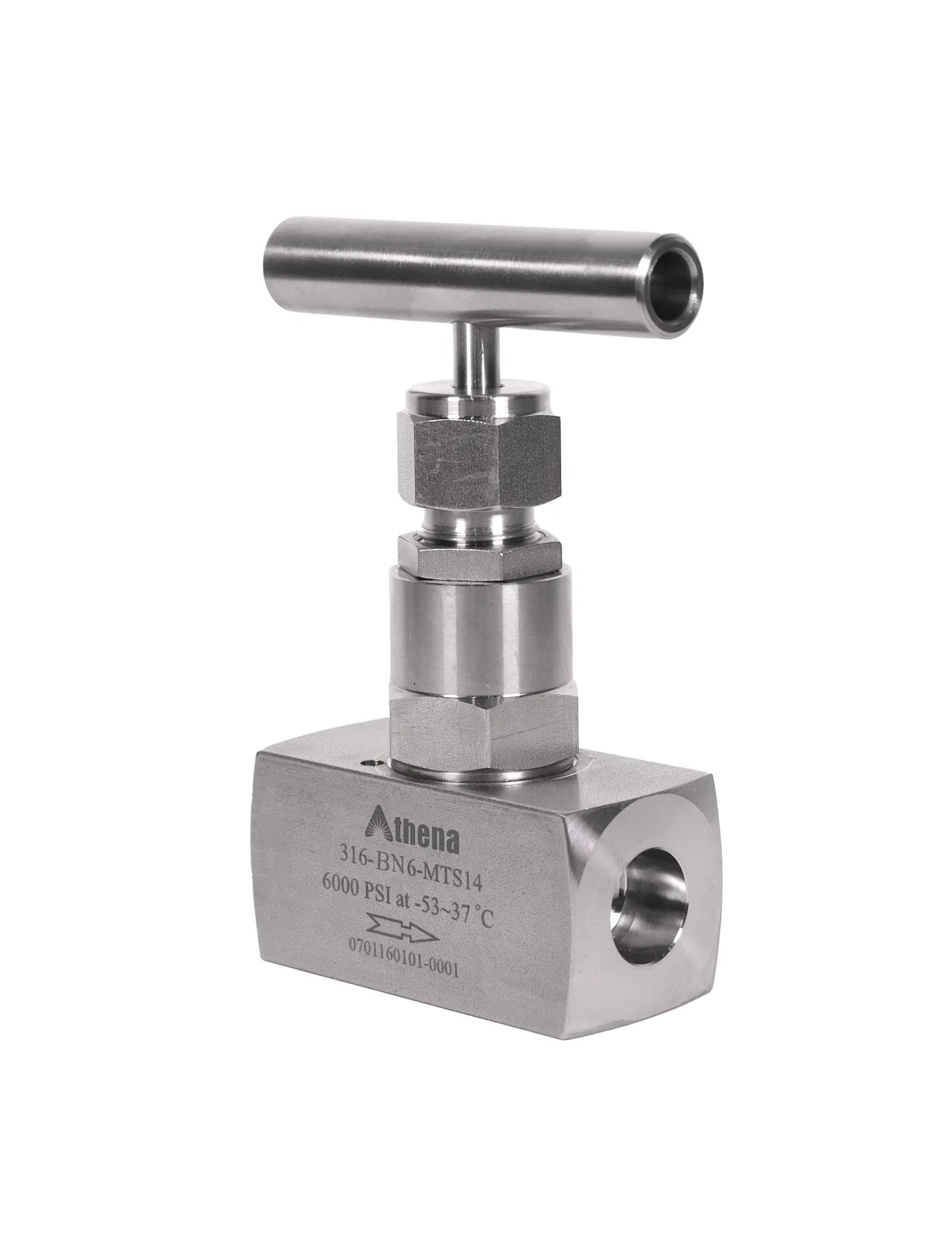

Athena Bar Stock Needle Valve
-Material: 316SS, titanium, other material as request
-Working Pressure: Up to 6000 psi (413 bar)
-Working Temperature 65℉ to 850℉（ 53 ℃to 455℃）
-End Connection Type: Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/8 to 11/4 in., 3 to 28 mm
-Working Pressure: Up to 6000 psi (413 bar)
-Working Temperature 65℉ to 850℉（ 53 ℃to 455℃）
-End Connection Type: Metric and fractional tube fittings,NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/8 to 11/4 in., 3 to 28 mm
Quantity

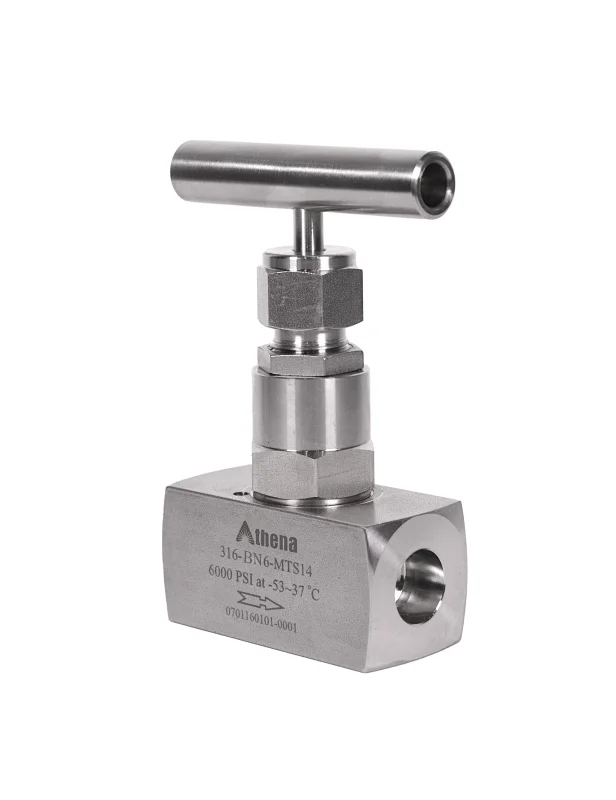

Athena Bar Stock Needle Valve
Performance
-Rolled threads of packing bolt ensures longer life service
-Double lock pins promise steady and durable fastening of valve handle
-Stop pin prevents loosening of valve cover
-Cold rolled threads of valve stem
-Stellite surfacing lower stem has better wear resistance
-Back seat seals in fully open position
-Double lock pins promise steady and durable fastening of valve handle
-Stop pin prevents loosening of valve cover
-Cold rolled threads of valve stem
-Stellite surfacing lower stem has better wear resistance
-Back seat seals in fully open position
