1/2”~2”150LB~2500LB Angle Globe Valve is A Modified Version of “T”-Pattern saving installation time
Angle Globe Valve
Size: 1/2”~2”

Pressure rating: 150Lb~2500Lb

Material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelloy etc.)/alloy steel/ Al-bronze

End connection: RF/RTJ/BW/SW/FNPT

Construction: Bolted Bonnet/Welded Bonnet/Pressure Seal

Operation: Hand wheel/ Gear motor/pneumatic actuators

Anti-static design and API 6FA Fire Safe Design

NACE: MR0175

Bore: Full Bore and Reduced Bore

Certificate: CE/PED, ISO, ATEX, SIL
Quantity

Product Overview:

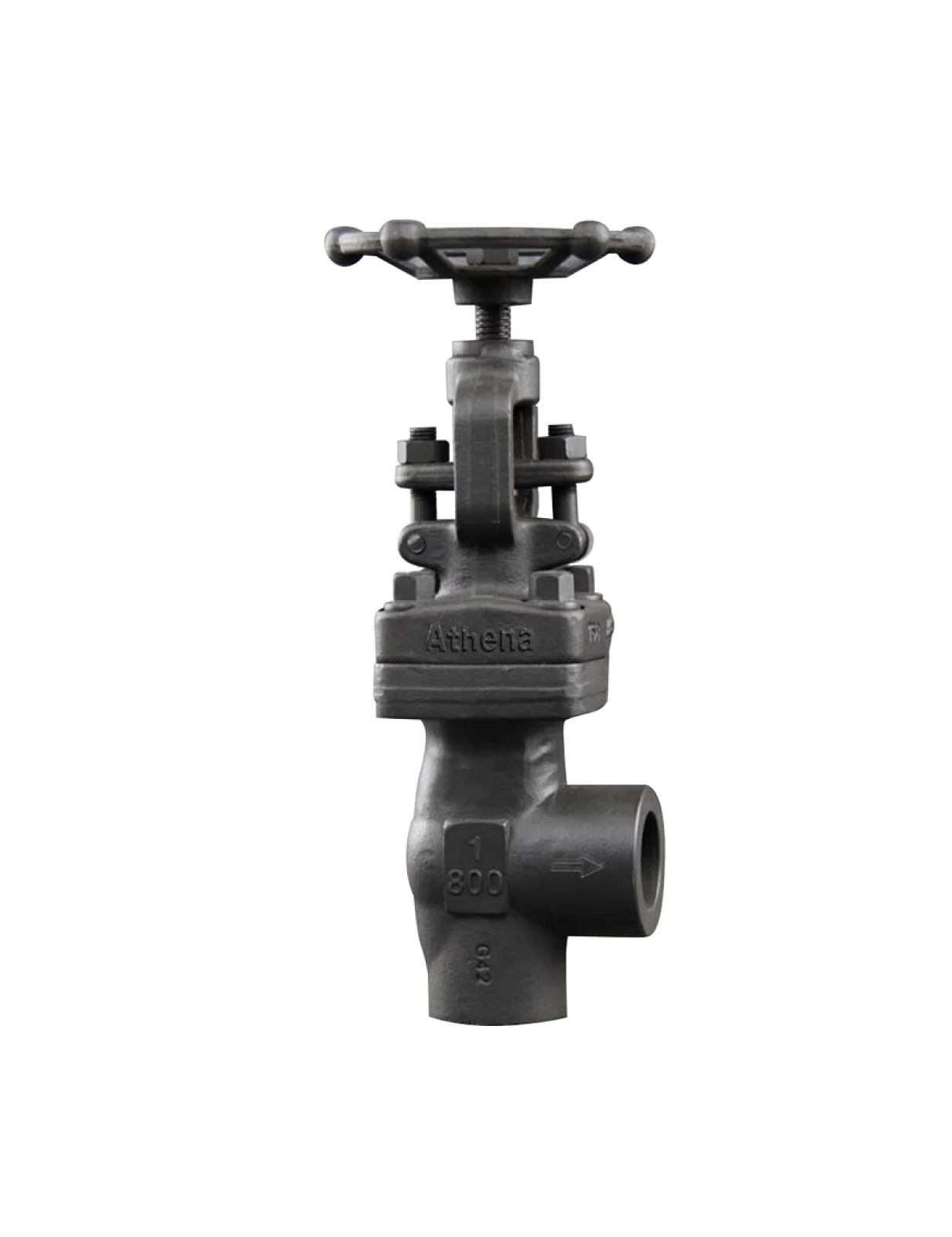

Athena S.R.L angle globe valve
- A modification of the basic standard pattern globe valve where the ends are at an angle of 90 degree angle. 45 degree angle or right angle.
- Athena globe angle valve have a streamlined curved bore to create optimal flow and lower CV value.
- They are used in the periodic pulsating flow because of their capability to handle the slugging effect of this type of flow.
- To avoid accumulation and crystallization of the medium, packing flushing and heating steam jackets can be added to the valve design.

Athena manufactures valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies



Partial List of Applications:

- Oil & Gas Pipelines
- Refineries and Petrochemical Plants
- Power Generation
- Gas and Coal Fired Turbines
- District Heating
- Gas Measurement Systems
- Offshore Platforms
- HIPPS Systems
- Cryogenic Service Applications
- Emergency Shut Down Valves
- Pulp & Paper
- Mining
- Boiler Steam and Drain Applications
