How many kinds of designs for ball valves?
There are several different designs for ball valves, each offering specific advantages and suitability for different applications. Here are some of the commonly used designs:
Floating Ball Design:
In a floating ball design ball valve, the ball is not fixed to the valve stem. Instead, it is held in place by the pressure of the flowing fluid. When the valve is in the closed position, the upstream pressure pushes the ball against the downstream seat, creating a seal and preventing the fluid from passing through. When the valve is opened, the ball rotates away from the seat, allowing the fluid to flow through the bore of the ball valve.
The key characteristic of the floating ball design is that the ball is free to move or float slightly within the valve body. This movement ensures that the ball aligns itself with the seat, allowing for a reliable seal and minimizing the risk of leakage. The floating ball design is suitable for low- to medium-pressure applications where tight shutoff is required.
Floating ball valves are commonly used in various industries, including oil and gas, petrochemical, water treatment, and general industrial applications. They are available in a wide range of sizes, materials, and configurations to meet specific application requirements. Floating ball valves can be operated manually with a handle or actuated with electric, pneumatic, or hydraulic actuators for automated control.
Trunnion Ball Design:
In a trunnion ball design ball valve, the ball is supported by trunnions, which are extensions or shafts connected to the valve body. Unlike the floating ball design where the ball is free to move, in the trunnion ball design, the ball is fixed and supported by the trunnions.
The trunnion-mounted ball valve design provides additional stability and reduces the operating torque required to operate the valve, especially in larger sizes and high-pressure applications. The trunnions act as pivot points, supporting the ball and allowing it to rotate smoothly within the valve body.
Trunnion ball valves are commonly used in applications that require high-pressure capabilities or large-diameter valves. They offer improved sealing performance and reduced operating torque compared to floating ball valves, making them suitable for critical applications where tight shut-off and reliable operation are essential.
The trunnion ball design is commonly found in industries such as oil and gas, pipeline transportation, refining, and power generation. Trunnion ball valves are available in various configurations, such as two-piece, three-piece, and top-entry designs, and they can be operated manually or automated with actuators for remote control and automation.
V-port Ball Design:
A V-port ball design ball valve, as the name suggests, features a V-shaped ball orifice instead of a standard round bore. The V-port design creates a precise control opening that allows for accurate flow modulation and control.
The V-port ball valve is specifically designed for applications that require precise flow control, such as throttling or modulating the flow rate. The V-shaped ball orifice provides a linear flow characteristic, allowing for a more predictable and proportional control of the fluid flow.
The degree of the V-shaped opening can vary, ranging from narrow V-ports to wide V-ports, depending on the desired flow control requirements. The angle of the V-port can also vary, typically ranging from 30 degrees to 90 degrees.
V-port ball valves are commonly used in industries such as chemical processing, oil and gas, power generation, and water treatment, where accurate control of flow rates is critical. They are particularly useful in applications such as blending, mixing, and dosing processes.
These valves are available in various sizes, materials, and configurations, including two-way and three-way designs. Actuators can be added to V-port ball valves for automated control and precise positioning. Additionally, some V-port ball valves offer the option of interchangeable balls, allowing for customization of the V-port size or angle to suit specific flow control requirements.
Multi-port Ball Design:
A multi-port ball design ball valve is a type of ball valve that features more than two ports or openings. Instead of the traditional two-way configuration (inlet and outlet), multi-port ball valves have additional ports, allowing for more complex flow patterns and options for diverting flow or mixing fluids.
The number of ports in a multi-port ball valve can vary depending on the specific design and application requirements. Common configurations include three-way and four-way ball valves, although there can be valves with even more ports for specialized applications.
- Three-way ball valves: These valves have three ports, typically labeled as an inlet, outlet A, and outlet B. They provide the ability to divert the flow between two outlet ports, allowing for different flow paths or directions. Three-way ball valves are often used in applications where flow switching or mixing is required, such as selector valves, bypass valves, or systems that require flow diversion.
- Four-way ball valves: These valves have four ports, typically labeled as two inlets and two outlets. They offer more complex flow patterns and can provide options for mixing or diverting flows between multiple lines. Four-way ball valves are commonly used in applications where two separate systems need to be connected or isolated, or where flow needs to be redirected to different lines.
- Multi-port ball valves are used in various industries and applications, including chemical processing, oil and gas, water treatment, HVAC (heating, ventilation, and air conditioning), and process control systems. They are available in different sizes, materials, and configurations to suit specific application requirements. Actuators can also be added to multi-port ball valves for automated control and remote operation.
Cavity Filler Ball Design:
The cavity filler ball design ball valve is a type of ball valve that incorporates a cavity or cavity fillers within the ball structure. The purpose of this design is to prevent fluid from getting trapped inside the valve body when the valve is in the closed position.
In a typical ball valve, when the valve is closed, there is a small cavity between the ball and the valve body. This cavity can potentially trap fluid, leading to contamination or freezing issues. However, in a cavity filler ball valve, the ball is modified to include cavity fillers or extensions that occupy the space between the ball and the valve body when the valve is closed.
The cavity fillers, often made of the same material as the ball, act as extensions that bridge the gap between the ball and the valve body, effectively eliminating the cavity. This design ensures that there are no void spaces where fluid can get trapped, reducing the risk of contamination, clogging, or freezing.
Cavity filler ball valves are commonly used in applications where fluid contamination or freezing is a concern, such as in the chemical, pharmaceutical, food and beverage, and cryogenic industries. They provide improved cleanliness, reduced maintenance requirements, and enhanced operational reliability.
It's worth noting that the specific design and construction of cavity filler ball valves can vary depending on the manufacturer and application requirements. Different materials, sealing mechanisms, and cavity filler configurations may be employed to suit specific operating conditions and fluid characteristics.
Fully Welded Ball Design:
A fully welded ball design valve, also known as a welded body ball valve, is a type of ball valve that features a welded construction throughout its body. Unlike traditional ball valves that have separate body components connected by flanges or threaded connections, the fully welded ball valve has a one-piece welded body, resulting in a robust and leak-resistant construction.
In a fully welded ball valve, the body, end connectors, and ball are welded together, eliminating the need for external flanges or connectors. The welded body provides enhanced structural integrity and prevents potential leakage points, making it suitable for high-pressure, high-temperature, and critical applications.
Here are some key features and advantages of fully welded ball valves:
- Leak Resistance: The welded body eliminates potential leakage points associated with flanged or threaded connections, providing superior sealing performance and minimizing the risk of leakage.
- Strength and Durability: The one-piece welded construction offers excellent strength, durability, and resistance to deformation under high pressures or external forces.
- Enhanced Safety: The welded body design reduces the possibility of catastrophic failures and enhances overall operational safety.
- Reduced Maintenance: Fully welded ball valves require minimal maintenance due to their robust construction and elimination of external leakage points.
- Suitable for Buried or Submerged Applications: The welded body design makes these valves suitable for underground or submerged installations where protection from external elements is required.
Fully welded ball valves are commonly used in industries such as oil and gas, petrochemical, power generation, and pipeline transportation. They are preferred in applications where leak-tight sealing, high-pressure capabilities, and long-term reliability are critical. These valves are available in various sizes, pressure ratings, and materials, and can be operated manually or automated with actuators for remote control and monitoring.
Top Entry and Side Entry Design:
Top entry and side entry designs refer to different configurations of the valve body in ball valves. These designs determine the access points for maintenance, repair, and component replacement. Here's an overview of each design:

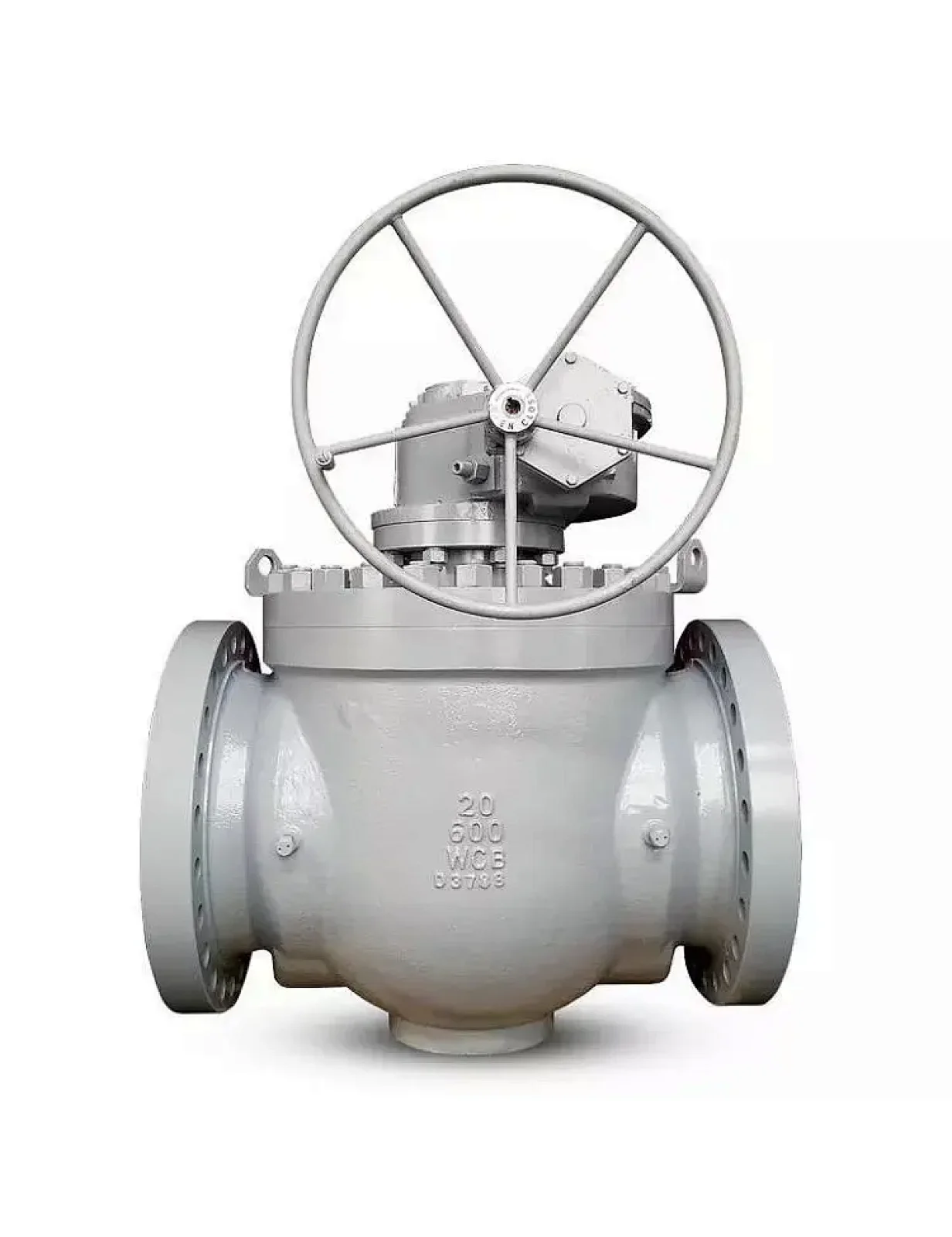

Top Entry Ball Valve:
In a top entry ball valve, the valve body has a removable top portion or bonnet. This allows for easy access to the internal components of the valve, such as the ball, seats, stem, and seals, without the need to remove the entire valve from the pipeline. The bonnet can be unbolted or threaded, providing a convenient way to service or replace internal parts. Top entry ball valves are commonly used in applications where frequent maintenance or inspection is required, as they enable quick and efficient access to internal components for repairs or replacements.
Side Entry Ball Valve:
In a side entry ball valve, the valve body has a side entry point or access port, typically located on the side of the valve body. The side entry design allows for access to the internal components by removing the side port cover or bonnet. This design is often used in ball valves with larger diameters or in applications where the valve is installed in a horizontal pipeline. Side entry ball valves are beneficial when it is not practical or feasible to access the valve from the top due to space limitations or piping arrangements.
Both top entry and side entry ball valves offer advantages depending on the specific application and maintenance requirements. The choice between the two designs depends on factors such as valve size, installation orientation, ease of maintenance, and the need for accessibility to internal components.
These are just a few examples of the different designs available for ball valves. The selection of a specific design depends on factors such as the application requirements, pressure and temperature conditions, flow control needs, and system compatibility.
